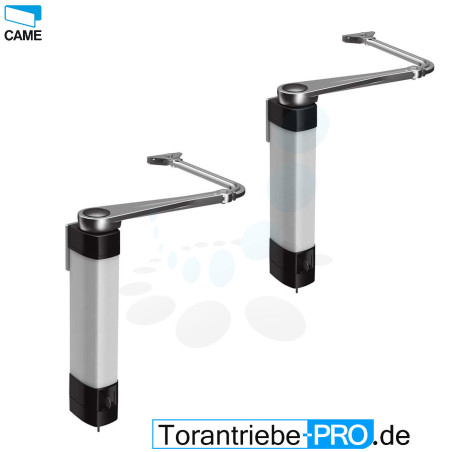

2 x CAME STYLO Swing Gate Motor 24V
Rating
CAME STYLO is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 1,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices. Thanks to low voltage this motor is perfect for intesive use. This motor has an encoder.
Description
CAME STYLO is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 1,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 15 cm of distance between the gate pivot and the gate mounting of the motor is allowed. Thanks to low voltage this motor is perfect for intesive use. This motor has an encoder.
| BASIC INFORMATION | |
| Motor power supply | 24V |
| Leaf maximum width | 1,8 m |
| Leaf maximum weight | 150 kg |
| D-Dimension | 15 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/24 V |
| Current draw | 5 A |
| Max Power | 48 W |
| Duty cycle | intensive |
| Traction force | 540 Nm |
| Motor thermal protection | - |
| Opening time (90°) | adjustable |
| Maximum opening angle | 90° |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 54 |
| Self-locking | yes |
| Limit switches for opening | no |
| Limit switches for closing | no |
| Encoder | yes |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | no |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |
Product Details
C_2xSTYLO
5901698643775
Data sheet
- Height
- 1,8 m
- Width
- 150 kg
- Depth
- 2 Flügel
- Weight
- Gelenkarmantrieb
- max. Flügelbreite
- 18 cm
- max. Flügelgewicht
- elektromechanisch
- D-Maß
- 5
- Antriebstyp
- 48 W
- Versorgung
- intensiv
- Schutzart
- 100 Nm
IP 54 - Soft-Start / Soft-Stop
- 150 °C
- Öffnungszeit bis 90°
- einstellbar
- max. Öffnungswinkel
- 90°
- Betriebstemperatur
- -20 - +55°C
- Selbsthemmend
- ja
- Endschalter für AUF
- nein
- Endschalter für ZU
- nein
- Enkoder
- ja
- Sets
- Antriebe im Set
