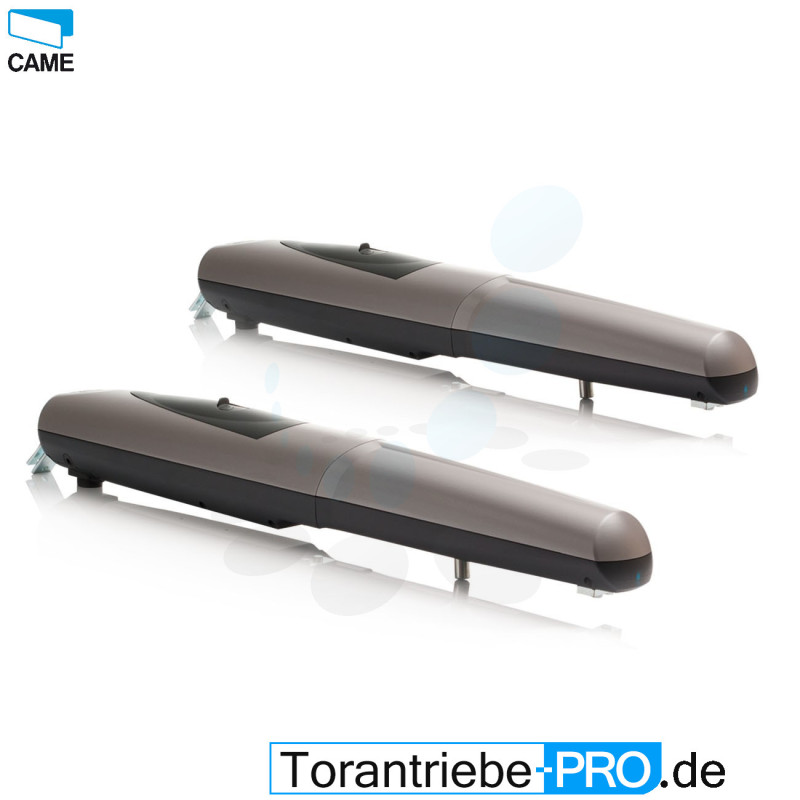

CAME AXO AX71230 Swing gate motor 230V
Rating
Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX71230 can operate on gates wide up to 7 m. The maximum weight is 1000 kg.
Description
Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX71230 can operate on gates wide up to 7 m. The maximum weight is 1000 kg.
This motor isn't self-locking, therefore you will require an electric lock CAME LOCK 81 in order to block the gate in the closed position.
| BASIC INFORMATION | |
| Motor power supply | 230V |
| Leaf maximum width | 7 m |
| Leaf maximum weight | 1000 kg |
| D-Dimension | 5 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 V |
| Current draw | 1,5 A |
| Max Power | 175 W |
| Duty cycle | 30% |
| Traction force | 4500 N |
| Motor thermal protection | 150° C |
| Opening time (90°) | 40 s |
| Maximum opening angle | 120° |
| Operating temperature | -20° + 50°C |
| Protection rating | IP44 |
| Self-locking | no |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | yes |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |
| This kit contains |
| - 1 x Came AXO AX71230 motor - 1 x Manual - 1 x Invoice (19% of tax incl.) |
Product Details
C_2xAX71230
5901698643690
Data sheet
- Height
- 6,5 m
- Width
- 900 kg
- Depth
- 2 Flügel
- Weight
- Spindelantrieb
- Compositions
- 230 V
- Styles
- 6,5 m
- Properties
- 900 kg
- max. Flügelbreite
- 5 cm
- max. Flügelgewicht
- elektromechanisch
- D-Maß
- 1,5 A
- Antriebstyp
- 175 W
- Versorgung
- 30 %
- Schutzart
- 4500 N
IP 44 - Soft-Start / Soft-Stop
- 150 °C
- Öffnungszeit bis 90°
- 40 s
- max. Öffnungswinkel
- 120°
- Betriebstemperatur
- -20° + 50°C
- Selbsthemmend
- nein
- Endschalter für AUF
- ja
- Endschalter für ZU
- ja
- Enkoder
- ja
- Sets
- Antriebe im Set
