Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX3024 can operate on gates wide up to 3 m. The maximum weight is 800 kg. The 24 V technology guarantees safety and long life.
Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX3024 can operate on gates wide up to 3 m. The maximum weight is 800 kg. The 24 V technology guarantees safety and long life.
| BASIC INFORMATION | |
| Motor power supply | 24V |
| Leaf maximum width | 3m |
| Leaf maximum weight | 800 kg |
| D-Dimension | 5 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/24 V |
| Current draw | 10 A |
| Max Power | 240 W |
| Duty cycle | intensive |
| Traction force | 4500 N |
| Motor thermal protection | - |
| Opening time (90°) | adjustable |
| Maximum opening angle | 120° |
| Operating temperature | -20° + 50°C |
| Protection rating | IP44 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | yes |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |

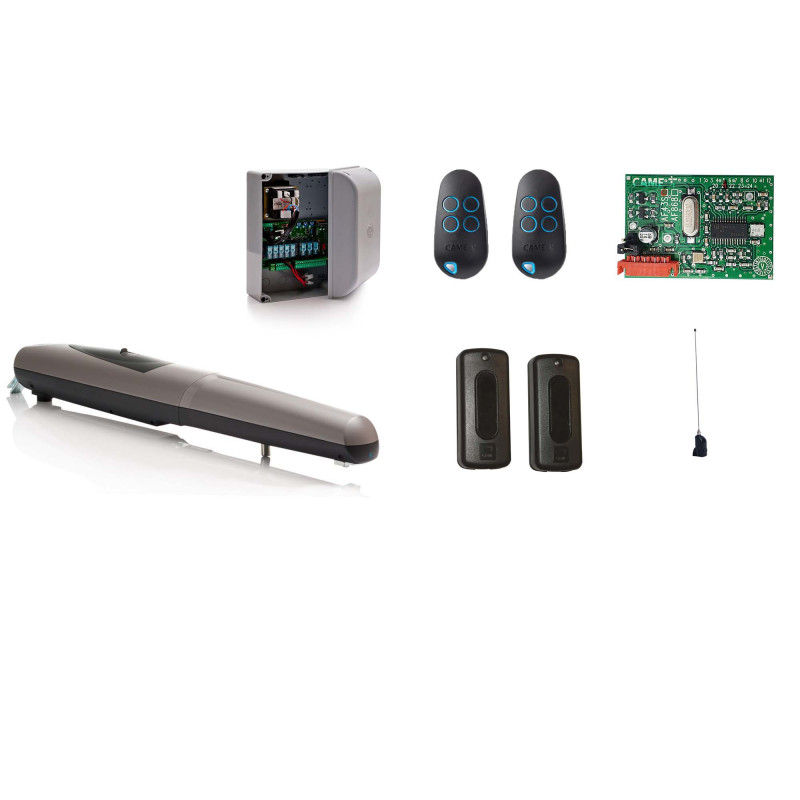

| This kit contains |
| - 1 x Came AXO AX3024 motor - 1 x Came unit ZLJ24 - 1 x Frequency card TAF43S - 2 x Came Top 432EV remote - 1 x Pair of Came DELTA-E photocells - 1 x Atenna CAME A433 - 1 x Manual - 1 x Invoice (19% of tax incl.) |
Data sheet
Came AXO is an electromechanical motor used especially for automating large gates. The AXO AX3024 can operate on gates wide up to 3 m. The maximum weight is 800 kg. The 24 V technology guarantees safety and long life.
