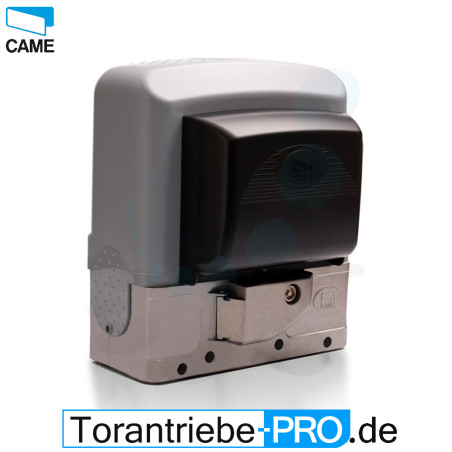

CAME BK 1800E Sliding Gate Motor
  • CAME BK 1800E Sliding Gate Motor

CAME BK 1800E Sliding Gate Motor

C_BK1800E
Rating

CAME BK 1800E is a 230 V sliding gate motor that can automate gates wide up to 9 m. This version has a built-in encoder. The maximum weight is 1800 kg. It is designed for multi-user and public environments.

€1,207.00
Tax included
Quantity

Description

CAME BK 1800E is a 230 V sliding gate motor that can automate gates wide up to 9 m. This version has a built-in encoder. The maximum weight is 1800 kg. It is designed for multi-user and public environments.

BASIC INFORMATION
Motor power supply 230V
Leaf maximum width  9 m
Leaf maximum weight  1800 kg
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  4,2 A
Max Power  480 W
Duty cycle  50%
Traction force  1150 N
Motor thermal protection  150°C
Speed (m/min)  10,5 m/min
Operating temperature  -20° + 50°C
Protection rating  IP 54
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Partial opening function:  yes
Electrolock connection  ?
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes/yes
Product Details
CAME
C_BK1800E
5901698642280

Data sheet

Compositions
230 V
max. Torbreite
20 m
max. Torgewicht
1.800 kg
max. Flügelgewicht
elektromechanisch
D-Maß
4,2 A
Antriebstyp
480 W
Versorgung
50%
Schutzart
1150 N
IP 54
Soft-Start / Soft-Stop
150 °C
ja
Geschwindigkeit
10 m/min
Betriebstemperatur
-20 - +55°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
ja
Zweite Linie der Lichtschranken
ja
Teilöffnungsfunktion
ja
Amperometrische Hinderniserkennung
ja
Individuelle Zeiteinstellung
ja
Individuelle Krafteinstellung
ja
Vorwarnzeit der Blinkleuchte
ja
Automatisches Schließen
ja
Sets
Einzelantriebe
Torbreite
500 kg
Torgewicht
1.800 kg
