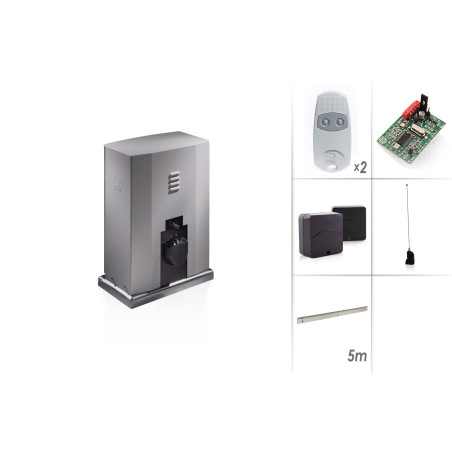

CAME BY 3500T is a 400 V (three-phase) sliding gate motor that can automate gates wide up to 20 m. The maximum weight is 3500 kg. It is designed for multi-user and industrial environments.
CAME BY 3500T is a 400 V (three-phase) sliding gate motor that can automate gates wide up to 20 m. The maximum weight is 3500 kg. It is designed for multi-user and industrial environments.
| BASIC INFORMATION | |
| Motor power supply | 400V |
| Leaf maximum width | 20 m |
| Leaf maximum weight | 3500 kg |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/400 V |
| Current draw | 2 A |
| Max Power | 750 W |
| Duty cycle | 50% |
| Traction force | 3500 N |
| Motor thermal protection | 150°C |
| Speed (m/min) | 10,5 m/min |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 54 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Partial opening function: | yes |
| Electrolock connection | ? |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |
Data sheet
CAME BY 3500T is a 400 V (three-phase) sliding gate motor that can automate gates wide up to 20 m. The maximum weight is 3500 kg. It is designed for multi-user and industrial environments.
