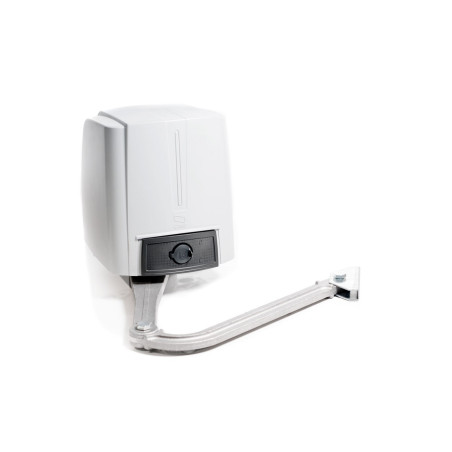

CAME FAST F7000 230V motor for swing gates
  • CAME FAST F7000 230V motor for swing gates

CAME FAST F7000 230V motor for swing gates

C_FAST7000

Came FAST F7001 is a reliable and usable operator designed for small residential swing gates with leaves of up to 2,3 m long or weighing up to 300 kg each leaf. The articulated arm is a perfect solution if your gate is mounted on large pilars.

€697.00
Tax included
Quantity

Description

Came FAST F7001 is a reliable and usable operator designed for small residential swing gates with leaves of up to 2,3 m long or weighing up to 300 kg each leaf. The articulated arm is a perfect solution if your gate is mounted on large pilars.

BASIC INFORMATION
Motor power supply 230V
Leaf maximum width  2,3 m
Leaf maximum weight  300 kg
D-Dimension  20 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  1,4 A
Max Power  160W
Duty cycle  30%
Traction force  180 Nm
Motor thermal protection  150 °C
Opening time (90°)  18 s
Maximum opening angle  90 °
Operating temperature  -20° + 50 °C
Protection rating  IP 54
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  no
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  no
Pedestrian passage function  no
Electrolock connection  yes
Amperometric sensor  no
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  no
Automatic closing  yes
Soft-stop, soft-start  no



The kit contains:
- 1 x Came FAST F7001 motor (without the control board)
- 1 x Manual
- 1 x Invoice (19% of tax incl.)
Product Details
CAME
C_FAST7000
5901698643904

Data sheet

Height
2,3 m
Width
200 - 400 kg
Depth
1 Flügel
Weight
Gelenkarmantrieb
Compositions
230 V
Styles
2,3 m
Properties
300 kg
max. Flügelbreite
20 cm
max. Flügelgewicht
elektromechanisch
D-Maß
1,4 A
Antriebstyp
160 W
Versorgung
30 %
Schutzart
180 Nm
IP 54
Soft-Start / Soft-Stop
150 °C
Öffnungszeit bis 90°
18 s
max. Öffnungswinkel
90°
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
nein
Sets
Einzelantriebe

EU manufacturer/responsible person

CAME S. p. A.
Via Martiri della Libertà 15
Dosson di Casier
31030 Italien

Phone: +3904224940
