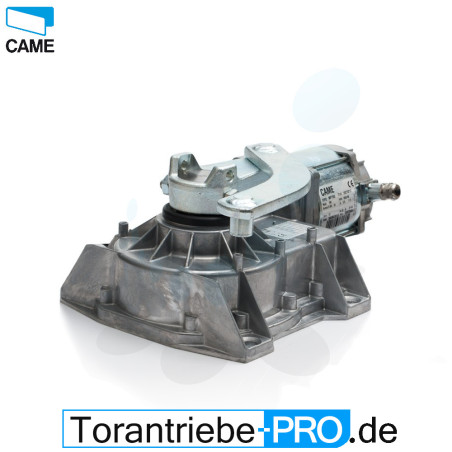

CAME FROG AE Underground 230 V motor without casing
  • CAME FROG AE Underground 230 V motor without casing
  • CAME FROG AE Underground 230 V motor without casing

CAME FROG AE Underground 230 V motor without casing

C_FROGAE
Rating

FROG AE is an underground 230V motor for larger gates  up to 3,5 m. The maximum weight is 800 kg (for max. 2 m). The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile. This version of FROG has a built-in encoder.

€557.00
Tax included
Quantity

Description

FROG AE is an underground 230V motor for larger gates  up to 3,5 m. The maximum weight is 800 kg (for max. 2 m). The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile. This version of FROG has a built-in encoder.

BASIC INFORMATION
Motor power supply  230V
Leaf maximum width  3,5 m
Leaf maximum weight  800 kg
D-Dimension  unlimited
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  1,9 A
Max Power  200 W
Duty cycle  30%
Traction force  320 Nm
Motor thermal protection  150°C
Opening time (90°)  18 s
Maximum opening angle  180° (with lever)
Operating temperature  -20° + 50°C
Protection rating  IP 67
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes/yes





Product Details
CAME
C_FROGAE
5901698642853

Data sheet

Height
3,5 m
Width
800 kg
Weight
Unterflurantrieb
Compositions
230 V
Styles
3,5 m
Properties
800 kg
max. Flügelbreite
unbeschränkt
max. Flügelgewicht
elektromechanisch
D-Maß
1,9 A
Antriebstyp
200 W
Versorgung
30 %
Schutzart
320 Nm
IP 67
Soft-Start / Soft-Stop
150 °C
Öffnungszeit bis 90°
18 s
max. Öffnungswinkel
180° (mit Sonderbeschlag)
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
ja
Sets
Einzelantriebe
