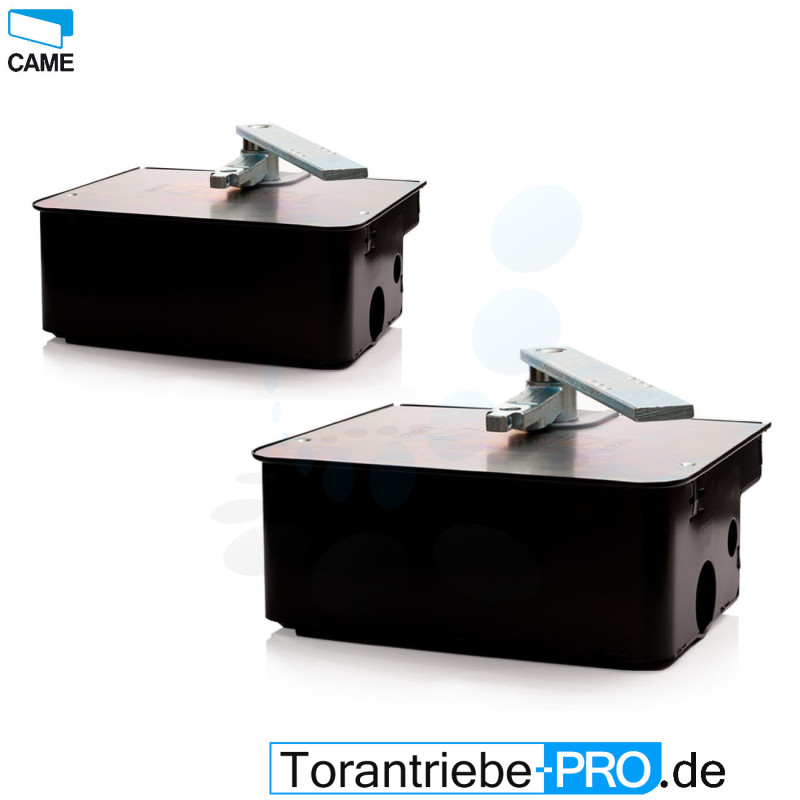

2 x CAME FROG AV Underground motor with caising
Rating
FROG AV is an underground 230V motor for small gates up to 1,2 m. The maximum weight is 200 kg. This motor is a faster version of FROG - opening time to 90° is only 9 seconds. The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile.
Description
FROG AV is an underground 230V motor for small gates up to 1,2 m. The maximum weight is 200 kg. This motor is a faster version of FROG - opening time to 90° is only 9 seconds. The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile.
| BASIC INFORMATION | |
| Motor power supply | 230V |
| Leaf maximum width | 1,2 m |
| Leaf maximum weight | 200 kg |
| D-Dimension | unlimited |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 V |
| Current draw | 2,5 A |
| Max Power | 300 W |
| Duty cycle | 30% |
| Traction force | 240 Nm |
| Motor thermal protection | 150°C |
| Opening time (90°) | 9 s |
| Maximum opening angle | 180° (with lever) |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 67 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | no |
| Running time adjustment | yes |
| Force adjustment | ? |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | ?/? |
Product Details
C_2xFROGAViW
5901698641351
Data sheet
- Height
- 1,2 m
- Width
- bis 200 kg
- Depth
- 1 Flügel
- Weight
- Unterflurantrieb
- Compositions
- 230 V
- max. Flügelbreite
- unbeschränkt
- max. Flügelgewicht
- elektromechanisch
- D-Maß
- 2,5 A
- Antriebstyp
- 300 W
- Versorgung
- 30 %
- Schutzart
- 240 Nm
IP 67 - Soft-Start / Soft-Stop
- 150 °C
- Öffnungszeit bis 90°
- 9 s
- max. Öffnungswinkel
- 180° (mit Sonderbeschlag)
- Betriebstemperatur
- -20° + 50°C
- Selbsthemmend
- ja
- Endschalter für AUF
- ja
- Endschalter für ZU
- ja
- Enkoder
- nein
- Sets
- Antriebe im Set
