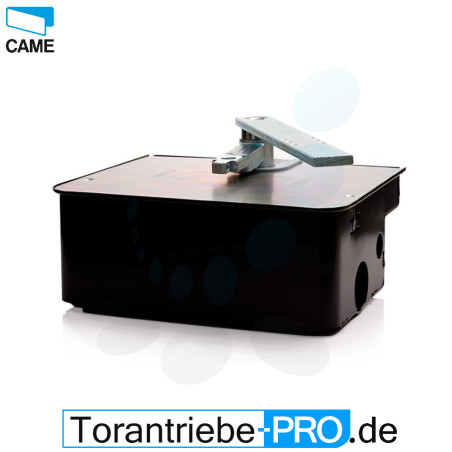

CAME FROG A24E Underground 24V motor with caising
Rating
FROG A24E is an underground 24V motor with built-in decoder for larger gates up to 3,5 m. The maximum weight is 800 kg (for max. 2 m). The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile. The low voltage allows reliable and safe functionning.
Description
FROG A24E is an underground 24V motor with built-in decoder for larger gates up to 3,5 m. The maximum weight is 800 kg (for max. 2 m). The underground solution is perfect if your D-dimension is too big, or you do not wish to change your gate's design by installing standard solutions. FROG is almost invisibile. The low voltage allows reliable and safe functionning.
| BASIC INFORMATION | |
| Motor power supply | 24V |
| Leaf maximum width | 3,5 m |
| Leaf maximum weight | 800 kg |
| D-Dimension | unlimited |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/24 V |
| Current draw | 15 A |
| Max Power | 180 W |
| Duty cycle | intensive |
| Traction force | 320 Nm |
| Motor thermal protection | - |
| Opening time (90°) | adjustable 16-45 s |
| Maximum opening angle | 180° (with lever) |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 67 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | yes |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |
Product Details
C_FROGA24EiW
5901698641900
Data sheet
- Height
- 3,5 m
- Width
- 800 kg
- Depth
- 1 Flügel
- Weight
- Unterflurantrieb
- Compositions
- 24 V
- max. Flügelbreite
- unbeschränkt
- max. Flügelgewicht
- elektromechanisch
- D-Maß
- 15 A
- Antriebstyp
- 180 W
- Versorgung
- intensiv
- Schutzart
- 320 Nm
IP 67 - Öffnungszeit bis 90°
- einstellbar, 16s - 45s
- max. Öffnungswinkel
- 180° (mit Sonderbeschlag)
- Betriebstemperatur
- -20° + 50°C
- Selbsthemmend
- ja
- Endschalter für AUF
- ja
- Endschalter für ZU
- ja
- Enkoder
- ja
