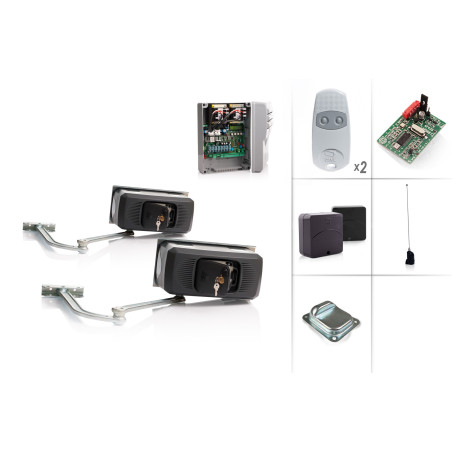

CAME FERNI F1024 is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 3,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed. Thanks to low voltage this motor is perfect for intesive use.
CAME FERNI F1024 is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 3,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed. Thanks to low voltage this motor is perfect for intesive use.
| BASIC INFORMATION | |
| Motor power supply | 24V |
| Leaf maximum width | 3,8 m |
| Leaf maximum weight | 800 kg |
| D-Dimension | 38 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/24 V |
| Current draw | 15 A |
| Max Power | 180 W |
| Duty cycle | intensive |
| Traction force | 470 Nm |
| Motor thermal protection | - |
| Opening time (90°) | 16-45 s |
| Maximum opening angle | 120° |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 54 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | no |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | no |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |
