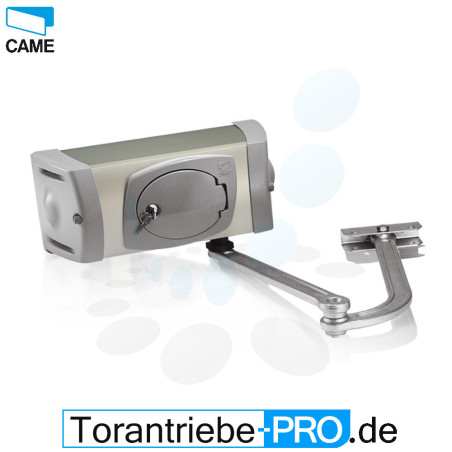

CAME FERNI 40230 Swing Gate Motor 230V
  • CAME FERNI 40230 Swing Gate Motor 230V

CAME FERNI 40230 Swing Gate Motor 230V

C_FERNI40230
Rating

CAME FERNI F40230 is a reliable electromechanical operator designed for swing gates with leaves up to 3,8 m wide. This new version of Ferni in 230V has an amperometric sensor. It's the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed.

€687.00
Tax included
Quantity

Description

CAME FERNI F40230 is a reliable electromechanical operator designed for swing gates with leaves up to 3,8 m wide. This new version of Ferni in 230V has an amperometric sensor. It's the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed.

BASIC INFORMATION
Motor power supply 230V
Leaf maximum width  3,8 m
Leaf maximum weight  800 kg
D-Dimension  38 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/230 V
Current draw  1,3 A
Max Power  140 W
Duty cycle  30 %
Traction force  540 Nm
Motor thermal protection  150 °C
Opening time (90°)  34 s
Maximum opening angle  120°
Operating temperature  -20° + 50°C
Protection rating  IP 54
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes/yes
Product Details
CAME
C_FERNI40230
5901698641634

Data sheet

Height
3,8 m
Width
800 kg
Depth
1 Flügel
Weight
Gelenkarmantrieb
Compositions
230 V
Styles
3,8 m
Properties
800 kg
max. Flügelbreite
38 cm
max. Flügelgewicht
elektromechanisch
D-Maß
1,3 A
Antriebstyp
140 W
Versorgung
30 %
Schutzart
540 Nm
IP 54
Soft-Start / Soft-Stop
150 °C
Öffnungszeit bis 90°
34 s
max. Öffnungswinkel
90°
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
ja
Sets
Einzelantriebe
