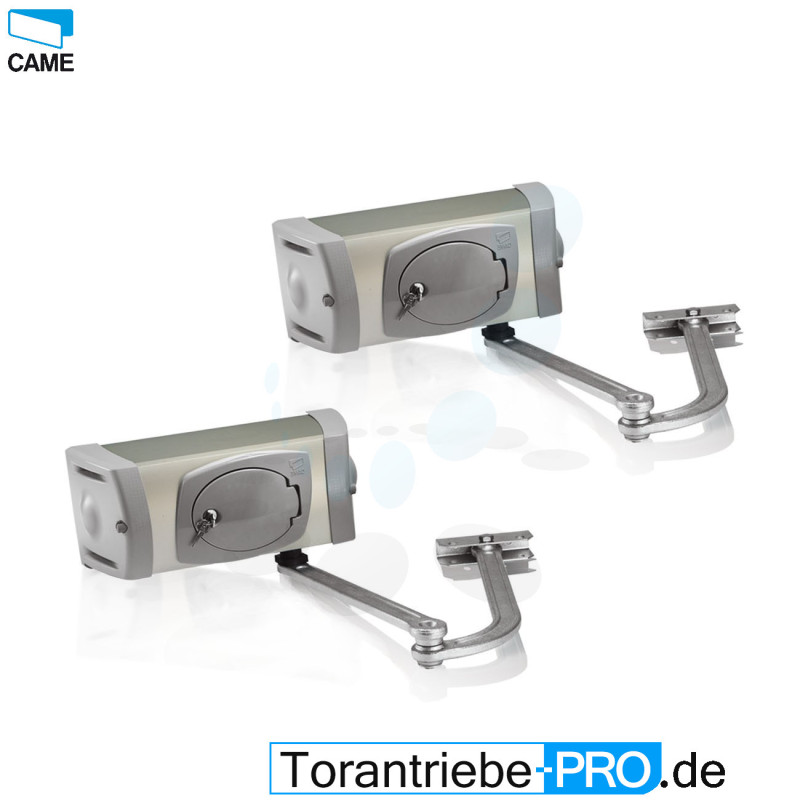

CAME FERNI 4024 Swing Gate Motor 24V
  • CAME FERNI 4024 Swing Gate Motor 24V
  • CAME FERNI 4024 Swing Gate Motor 24V

CAME FERNI 4024 Swing Gate Motor 24V

C_2xFERNI4024
Rating

CAME FERNI F4024 is a 24 V electromechanical operator designed for swing gates with leaves up to 3,8 m wide. It is an ideal solution when the motor-hinge centre distance is too large to mount any other motor, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed. The low voltage this motor is perfect for intesive use. This motor has an encoder.

€1,467.00
Tax included
Quantity

Description

CAME FERNI F4024 is a reliable 24 V electromechanical operator designed for swing gates with leaves up to 3,8 m wide. It is the ideal solution when the motor-hinge centre distance is too large to mount any other automation devices, even up to 38 cm of distance between the gate pivot and the gate mounting of the motor is allowed. Thanks to low voltage this motor is perfect for intesive use. This motor has an encoder.

BASIC INFORMATION
Motor power supply  24V
Leaf maximum width  3,8 m
Leaf maximum weight  800 kg
D-Dimension  38 cm
Motor type electronmechanical
MOTOR TECHNICAL DATA
Power Supply 230/24 V
Current draw  15 A
Max Power  180 W
Duty cycle  intensive
Traction force  540 Nm
Motor thermal protection  -
Opening time (90°)  16-45 s
Maximum opening angle  120°
Operating temperature  -20° + 50°C
Protection rating  IP 54
Self-locking  yes
Limit switches for opening  yes
Limit switches for closing  yes
Encoder  yes
BASIC CONTROL BOARD FUNCTIONS
Second line of photocells  yes
Pedestrian passage function  yes
Electrolock connection  yes
Amperometric sensor  yes
Running time adjustment  yes
Force adjustment  yes
Pre-Flashing of the warning light  yes
Automatic closing  yes
Soft-stop, soft-start  yes/yes
Product Details
CAME
C_2xFERNI4024
5901698644178

Data sheet

Height
3,8 m
Width
800 kg
Depth
2 Flügel
Weight
Gelenkarmantrieb
Compositions
24 V
Styles
3,8 m
Properties
800 kg
max. Flügelbreite
38 cm
max. Flügelgewicht
elektromechanisch
D-Maß
15 A
Antriebstyp
130 W
Versorgung
intensiv
Schutzart
540 Nm
IP 54
Soft-Start / Soft-Stop
-
Öffnungszeit bis 90°
ca. 16 - 45 s
max. Öffnungswinkel
90°
Betriebstemperatur
-20° + 50°C
Selbsthemmend
ja
Endschalter für AUF
ja
Endschalter für ZU
ja
Enkoder
ja
Sets
Antriebe im Set
