Came ATI A5024N is a powerful and sturdy 24V electromechanical motor. It can handle a swing gate of up to 5m in width or weighing up to 1000 kg. Kit M is a solution that contains 2 motors, control board, 2 remote controls, photocells, and antenna.
Came ATI A5024N is a powerful and sturdy 24V electromechanical motor. It can handle a swing gate of up to 5m in width or weighing up to 1000 kg.
ATI range of motors has been developed to provide maximum usability and reliability, thanks to the precise attention to deatils and high quality.
| BASIC INFORMATION | |
| Motor power supply | 24V |
| Leaf maximum width | 5 m |
| Leaf maximum weight | 1000 kg |
| D-Dimension | 6 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/24 V |
| Current draw | max. 10 A |
| Max Power | 120W |
| Duty cycle | intensif |
| Traction force | 3000 N |
| Motor thermal protection | - |
| Opening time (90°) | adjustable |
| Maximum opening angle | 120° |
| Operating temperature | -20 - +55°C |
| Protection rating | IP44 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | ? |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |

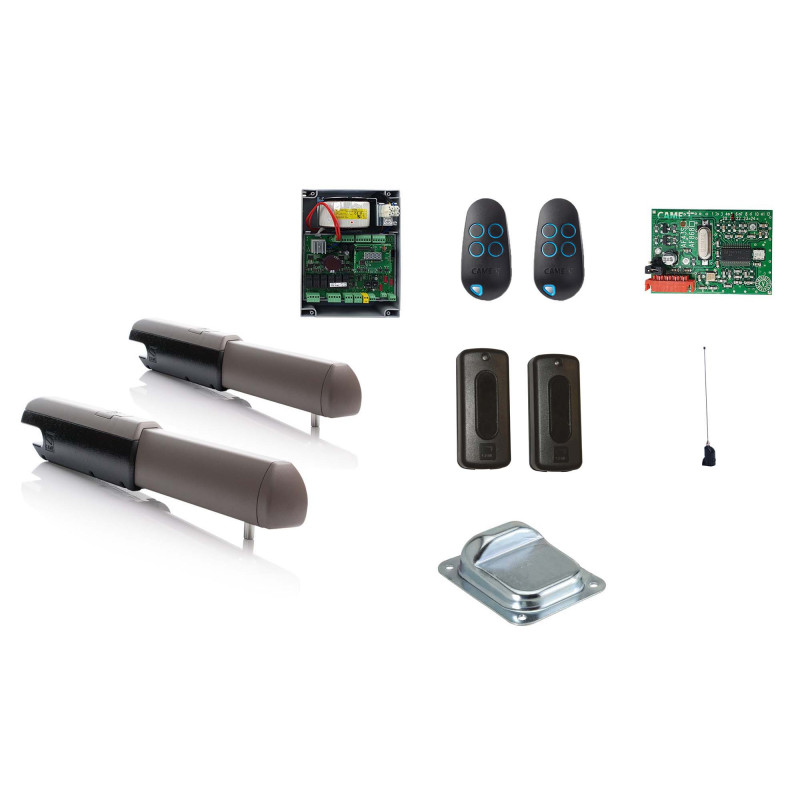

| The kit contains: |
| - 2 x Came ATI A5024N motor - 1 x Control unit ZL180N - 1 x Frequency card TAF43S - 2 x Came Top 432EV remote - 1 x Pair of Came DELTA-E photocells - 1 x Antenna A433 - 1 x Manual - 1 x Invoice (19% of tax incl.) |
Data sheet
Came ATI A5024N is a powerful and sturdy 24V electromechanical motor. It can handle a swing gate of up to 5m in width or weighing up to 1000 kg. Kit M is a solution that contains 2 motors, control board, 2 remote controls, photocells, and antenna.
