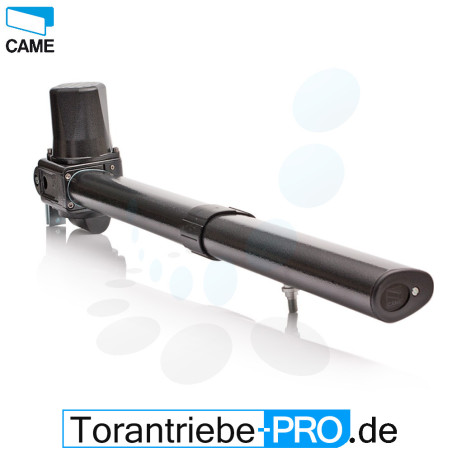

CAME KRONO 310 Swing Gate Motor
Rating
CAME KRONO 310 is a motor for swing gates wide up to 3 m. The maximum weight is 800 kg per leaf. It is an ideal solution for prestigious gates – it integrates aesthetics, harmony, and functionality. The KRONO 310 version has limit switches on both opening and closing position of the gate.
Description
CAME KRONO 310 is a motor for swing gates wide up to 3 m. The maximum weight is 800 kg per leaf. It is an ideal solution for prestigious gates – it integrates aesthetics, harmony, and functionality. The KRONO 310 version has limit switches on both opening and closing position of the gate.
| BASIC INFORMATION | |
| Motor power supply | 230V |
| Leaf maximum width | 3 m |
| Leaf maximum weight | 800 kg |
| D-Dimension | 5 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 V |
| Current draw | 1,1 A |
| Max Power | 130 W |
| Duty cycle | 30% |
| Traction force | 3000 Nm |
| Motor thermal protection | 150° |
| Opening time (90°) | 22 s |
| Maximum opening angle | 120° |
| Operating temperature | -20° + 50°C |
| Protection rating | IP 54 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | no |
| Running time adjustment | yes |
| Force adjustment | yes |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | no/no |
Product Details
C_KR310
5901698643942
Data sheet
- Height
- 3 - 5 m
- Width
- 800 kg
- Depth
- 1 Flügel
- Weight
- Spindelantrieb
- Compositions
- 230 V
- Styles
- 3 m
- Properties
- 800 kg
- max. Flügelbreite
- 5 cm
- max. Flügelgewicht
- elektromechanisch
- D-Maß
- 1,1 A
- Antriebstyp
- 130 W
- Versorgung
- 30 %
- Schutzart
- 3000 N
IP 54 - Soft-Start / Soft-Stop
- 150 °C
- Öffnungszeit bis 90°
- 22 s
- max. Öffnungswinkel
- 120°
- Betriebstemperatur
- -20° + 50°C
- Selbsthemmend
- ja
- Endschalter für AUF
- ja
- Endschalter für ZU
- ja
- Enkoder
- nein
- Sets
- Einzelantriebe
