Came ATI A3000A is a powerful and sturdy electromechanical motor.It can handle a swing gate of up to 3m in width or weighing up to 800 kg.
Came ATI A3000A is a powerful and sturdy electromechanical motor.It can handle a swing gate of up to 3m in width or weighing up to 800 kg.
ATI range of motors has been developed to provide maximum usability and reliability, thanks to the precise attention to deatils and high quality.
| BASIC INFORMATION | |
| Motor power supply | 230 |
| Leaf maximum width | 3 m |
| Leaf maximum weight | 800 kg |
| D-Dimension | 6 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/230 |
| Current draw | 1,2 A |
| Max Power | 150W |
| Duty cycle | 50% |
| Traction force | 3000 N |
| Motor thermal protection | 150 °C |
| Opening time (90°) | 19 s |
| Maximum opening angle | 120° |
| Operating temperature | -20 - +55°C |
| Protection rating | IP44 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | yes |
| Electrolock connection | yes |
| Amperometric sensor | no |
| Running time adjustment | yes |
| Force adjustment | ? |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | ? |
ZA3N Control board functions:
The command modes that may be defined:
After detecting an obstacle the photocells (not included in this kit) can:
| This kit contains: |

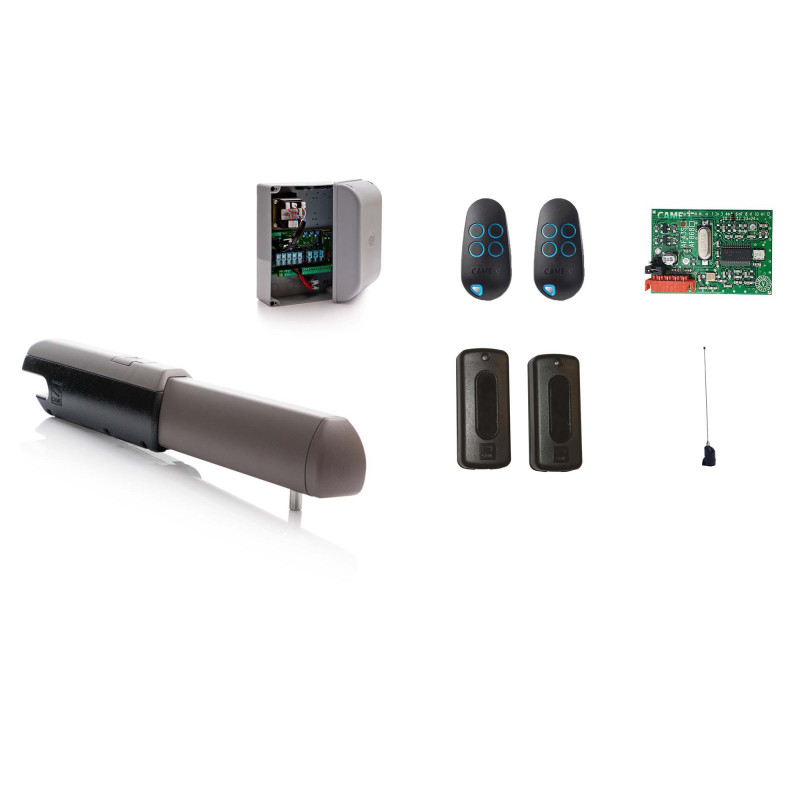

| - 1 x Came ATI A3000A motor - 1 x Control Unit ZA3N - 1 x Frequency card AF43S - 2 x Came Top 432EV transmitter - 1 x Came DELTA-E photocells - Operating manual - Invoice (the price incl. 19% tax) |
