Came Monojet324 Kit M contains 1 CAME ATI A3024N motor along with accessories such as 2 remote controls and photocells.Came ATI A3024N is a powerful and sturdy 24V electromechanical motor. It can handle a swing gate of up to 3m in width or weighing up to 800 kg.
Came ATI A3024N is a powerful and sturdy 24V electromechanical motor. It can handle a swing gate of up to 3m in width or weighing up to 800 kg.
ATI range of motors has been developed to provide maximum usability and reliability, thanks to the precise attention to deatils and high quality.
| BASIC INFORMATION | |
| Motor power supply | 24V |
| Leaf maximum width | 3 m |
| Leaf maximum weight | 800 kg |
| D-Dimension | 6 cm |
| Motor type | electronmechanical |
| MOTOR TECHNICAL DATA | |
| Power Supply | 230/24 V |
| Current draw | max. 10 A |
| Max Power | 120W |
| Duty cycle | intensif |
| Traction force | 3000 N |
| Motor thermal protection | - |
| Opening time (90°) | adjustable |
| Maximum opening angle | 120° |
| Operating temperature | -20 - +55°C |
| Protection rating | IP44 |
| Self-locking | yes |
| Limit switches for opening | yes |
| Limit switches for closing | yes |
| Encoder | no |
| BASIC CONTROL BOARD FUNCTIONS | |
| Second line of photocells | yes |
| Pedestrian passage function | no |
| Electrolock connection | yes |
| Amperometric sensor | yes |
| Running time adjustment | yes |
| Force adjustment | ? |
| Pre-Flashing of the warning light | yes |
| Automatic closing | yes |
| Soft-stop, soft-start | yes/yes |

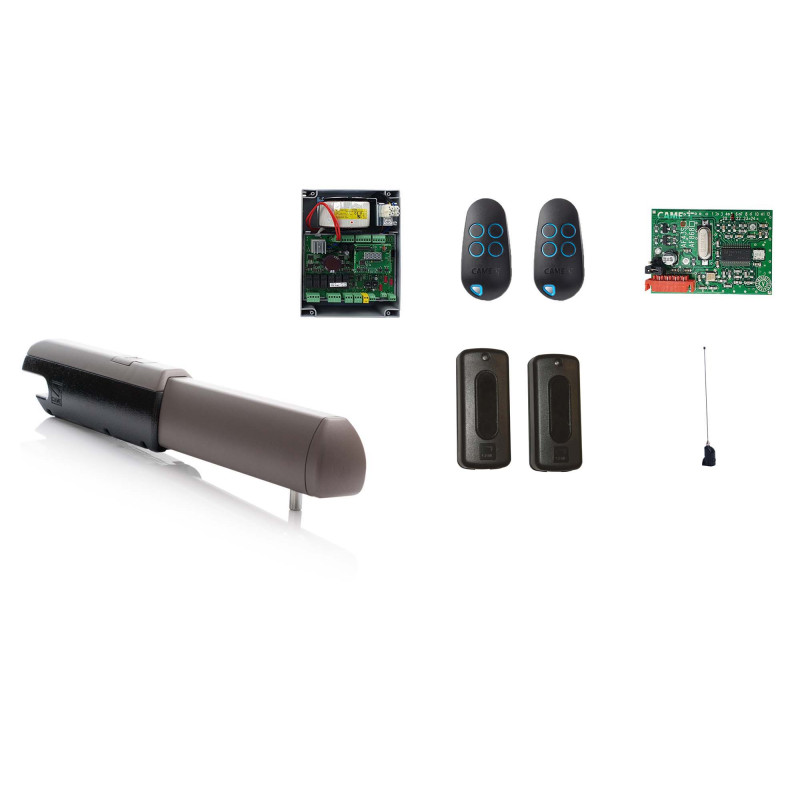

| The kit contains: |
| - 1 x Came ATI A3024N motor - 1 x Control unit ZL170N - 1 x Frequency card TAF43S - 2 x Came Top 432EV remote - 1 x Pair of Came DELTA-E photocells - 1 x Antenna Came A433 - 1 x Manual - 1 x Invoice (19% of tax incl.) |
